Full Automatic Terminal Crimping Machine
Product_description
Product Description

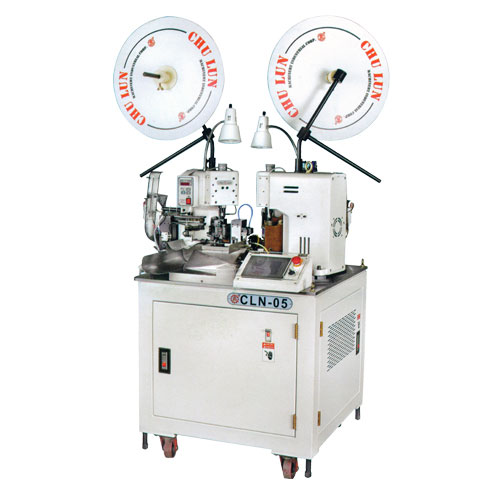

CLN-05
AUTOMATIC BUTTON STRAPING MACHINE (DOUBLE HEADS)
CHARACTERISTICS
• The method of changing the stripping length is adjusted by the full-screen computer touch method, and the stripping length can be changed quickly and easily
• Servo motor control system is used to complete sizing, wire cutting, stripping and other actions, so the accuracy is higher, the operation is simpler, and the performance is more stable.
• Head stamping position, through the touch panel to adjust the head stamping position
• Stamping height is adjusted by a quick fine-tuning knob, with an accuracy of 0.02mm per square, can be adjusted manually without tools, very precise and convenient.
• Designed with 100 sets of memory functions, which can shorten the time of wire replacement and adjustment.
• Designed with forward wire feed barrel making wire feeding more stable.
SPECIFICATIONS
|
Function |
Wire cutting, stripping 1 end, stripping 2 ends, stripping 1 half 1 end, stripping half 2 ends, stamping 1 end, stamping 2 ends |
|
Power supply |
AC 220V/380V 50/60 HZ three phase |
|
Manipulation method |
Manual, run once, and run automatically (continuous) |
|
Efficiency |
3800 sợi/giờ （độ dài trong khoảng 300） |
|
Cut length |
Standard PVC glue length 32 ~ 9,999mm |
|
Peeling depth |
100 steps 2mm (1 step = 0.02mm) |
|
Wire Specifications |
AWG#24-AWG#32（standard） |
|
Air pressure |
5-6kgs（Need clean dry air） |
|
End stamping ability |
1.8 Ton（Servo End Stamping Machine） |
|
Cutting accuracy |
Oscillating range 1mm + cutting length # 0.2% or less |
|
Stripping length |
No1 side 0mm-4mm、No2 side 0mm-7mm |
|
Test |
With or without power cord, overloaded wire, wire connector, NG stamping die, without terminal, overloaded terminal, low air pressure |
|
Size |
1，450L*1，100w*1900Hmm |
|
Weight |
About450kgs |
