Wire Cutting Machine
Product_description
Product Description
CL-520P

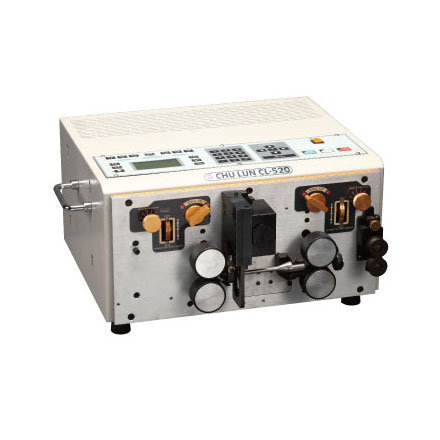

Wire Cutting Machine
Product Name
Automatic Wire Cutting Stripping Machine
Product Features
This is a fully-automated machine that performs high-speed computerized SATA cable cutting and stripping on both ends.
Display of full pictures, full screen operations display, clear and user friendly.
Providing broader range of design and production, applicable for wire material from AWG# 8~20.
Using Japanese 5-phase stepping motor for dimensional control to providing high productivity and precise dimensioning.
Designed with memory function for faster and more convenient production configuration.
Product Specification
| Power supply | AC 110∕220V |
| Wire size | SATA Cable |
| Cutting length | 110~999999.9 mm |
| Stripping length | 0.1~30 mm |
| Wire feed speed | Variable |
| Dimensions | 450 L×434 W×300 H mm |
| Weight | 35 Kgs |
Capacity
| Wire Length | 110 mm | 200 mm | 300 mm | 500 mm | 1000 mm | 5000 mm |
| Pcs-Hr | 756 | 744 | 726 | 702 | 642 | 378 |
