Product Description
C3-2.0S
Terminal Machine
Product Name

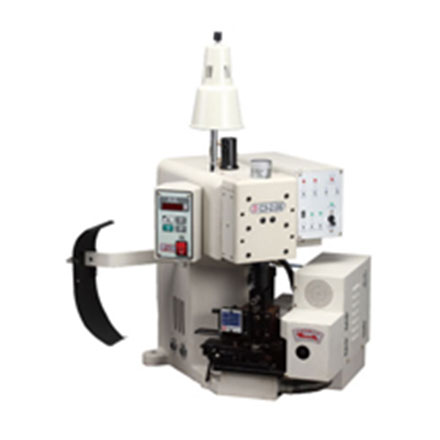

Server Motor Semi-Automatic Terminal Crimping Stripping Machine
Product Features
This machine is designed for the process of stripping the wire and then crimping it.
This machine is driven by a server motor of rigid construction and offers maximum precision and durability, free of delays and troubles in mechanical movements in conventional clutches, this machine comes with minimum number of movement parts avoid wear and replacements, maximum torque, minimum vibration, high stability assuring noise-free working environment.
This machine has self contained generator which is a quick and economical power source.
It also has three options for operation: automatic, manual and a continuation device for saving time.
You can adjust the continuations device according to the type of wire you use. After each crimping the machine will be in a ready position for another crimping.
The stripped-rubber is collected in a convenient way, so complications are avoided.
The special designed digital knob allows you to adjust the cutting depth without having to disassemble the machine. It has an accuracy range within 0.02mm.
Product Specification
| Power | AC 110 / 220V 50 ∕ 60 HZ 1 PHASE |
| Motor | AC 220V 500W (Crimping Machine) 40W (Stepping Motor, Stripping Component) |
| Capacity | Wire Stripping and Crimping |
| Operation | Complete Whole Process or Only Wire Stripping |
| Capacity Time | Free Regulate |
| Dimensions | 520 L×520 W×600 H mm |
| Weight | 85 Kgs |
Crimping Machine
| Pressure | 2.0 Ton |
| Stroke Length | 30 mm |
Stripping Component
| Wire Size | UL 1007 AWG# 18~32 |
| Stripping Length | 2~6 m/m |
Stripping Dust Handling
| Air Pressure | 5~6 kgf/cm² |
